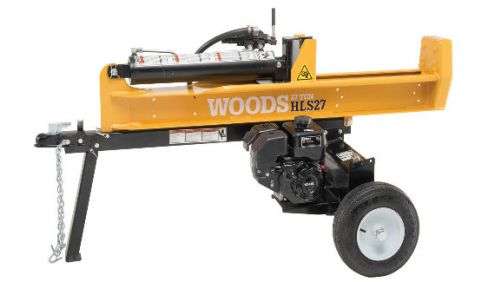

Woods HLS27
Log Splitters HLS27
Overview:
The Model HLS27 carries Woods’ reputation for rugged durability
and unbeatable performance – backed by service and support
from authorized Woods dealers.
Features
For a limited time, get the Woods 27-Ton Log Splitter packed with features including a Kohler® engine and high-strength U.S. steel for tough, reliable performance day after day and year after year.
HORIZONTAL / VERTICAL
- Kohler SH265 engine with a 2-stage 13 GPM pump
- 13-second cycle time
- A heavy-duty beam made of high-strength US steel interlocked with the reinforced footplate for superior strength
- 8-inch tall wedge optimized to cleanly split wood up to 24½ inches
- Road towable up to 45 MPH
Specifications
| Cycle time | 13 seconds |
| Operation | Horizontal and vertical |
| Engine | Kohler® SH265, 196 cc |
| Valve | Auto-return |
| Pump | 2 stage, 13 GPM |
| Cylinder | 4.5 inches x 24 inches (10.2 cm x 61 cm) |
| Hydraulic capacity | 26 quarts (24.6 L) |
| Wedge height | 8 inches (20.3 cm) |
| Beam | Manufactured in USA from high-strength US steel; 6 inches x 6 inches (15.2 cm x 15.2 cm) |
| Log capacity | 24.5 inches (61 cm) |
| Operating weight | 595 lbs (27- kg) |
| Wheels | 4.8-inch x 8-inch road towable tires, rated 45 mph |
| Hitch | 2-inch ball coupler, with safety chains |
