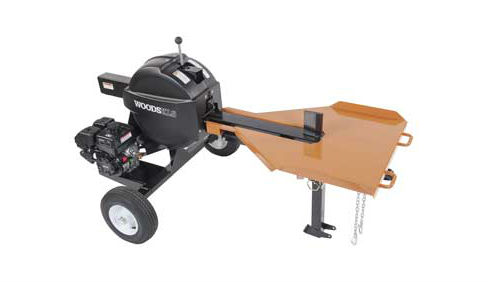

Woods KLS

Double tap to zoom



Features

  • 2-second cycle time is up to 6X faster than hydraulic 20 - 40 ton log splitters
  • No hydraulic fluid or parts – easy to maintain
  • Uses less fuel than hydraulic splitters because power requirements are less – saves money
  • Two-handed operation from either side
  • Patent-pending handle design, with torsion springs – virtually no kick-back
  • Ergonomic handle movement reduces operator fatigue – no unnecessary motion
  • High-strength steel, 32-inch wide table with heavy-duty stand
  • Tongue retracts for clear access to work table
  • Welded, table mounted lift handles – easy to move
  • Single piece, 6-inch hardened wedge
  • Precision, heat treated steel alloy rack and pinion gear system made in the USA

Specifications

Cycle time 2 seconds
Number of flywheels 2
Flywheel weight 70 lbs
Flywheel diameter 18-1/2"
Wedge height 6"
Operating weight 643 lbs
Engine Kohler® 6.5 HP engine, 196 cc
Wheels 4" x 8" road towable tires, rated 45 mph
Ball coupler 2", with safety chains
Table included Yes
