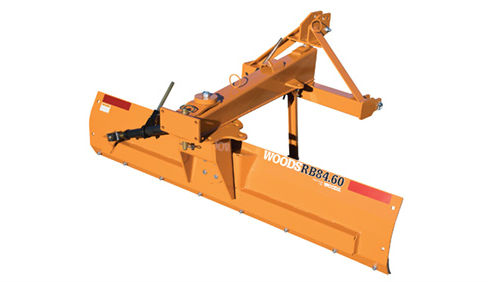

Woods RB84.60
Rear Blades RB84.60
Overview:
Ideal for grading dirt or gravel, cleaning up construction sites and moving snow
Features
- Choose any combination of manual or hydraulic
- Wide A-frame design with high-strength 17.5” tall steel moldboard for durability
- Double-beveled, reversible cutting edge for long life
- Relief valve included with hydraulic angle/offset kits; helps protect tractor and rear blade when striking unexpected objects
- Parking stand is included for added convenience
- Optional end plates hold more material; optional skid shoes and tail wheel increase depth control, adding versatility and productivity
Specifications
| Tractor Engine HP | 40-85 hp |
| Tractor hitch | Cat 1 & 2 |
| Working width | 83" |
| Moldboard height | 17.5" |
| Moldboard thickness | 0.313" (grade 80) |
| Operating Weight (mech. / hyd.) | 657 lbs / 705 lbs |
| Reversible Cutting Edge Dimensions | 1/2" x 6" |
| Pivot angle | up to 45° (mech or hyd) |
| Offset | up to 20" (mech or hyd) |
| Axle Size | up to 23° (mech or hyd) |
| Parking Stand | standard |
| End plates | optional |
| Skid shoes | optional |
| Tail wheel | optional |
| ASABE Quick Hitch Compatible | yes |
