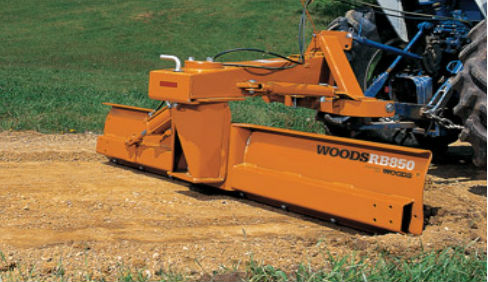

Woods RB850
Rear Blades RB850
Overview:
Ideal for grading dirt or gravel, cleaning up construction sites and moving snow
Features
- 8-foot moldboard length
- Tractor HP range: 50-100 hp
- Three-point hitch: Cat 2 and 3
- Available as fully hydraulic, fully manual or a combination of cylinder options
- Fully hydraulic models allow precise blade and material control (angle, tilt and offset)
- Tough, dozer-type full box construction
- Optional end plates, kid shoes and tail wheel
- Standard parking stand for added convenience
Specifications
| Tractor hitch | Cat 2 & 3 |
| Tractor Engine HP | 50 - 100 hp |
| Working width | 95" |
| Moldboard height | 17" |
| Moldboard thickness | .313" |
| Approximate weight | 855 lbs |
| Pivot angle | 15°, 30°, 45° & 60° each side fwd / 15° & 30° each side rev |
| Tilt | up to 30° |
| Offset | up to 23.5" left or right |
| End plates | optional |
| Skid shoes | optional |
| Tailwheel | optional |
| ASABE quick-hitch compatible | yes |
| Parking Stand | standard |
