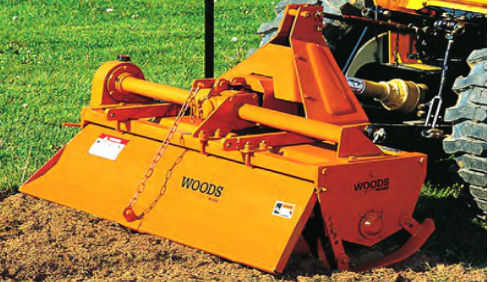

Woods GHT60
Rotary Tillers GHT60
Overview:
Woods’ line of rotary tillers couples the best design features with outstanding performance for the discerning user. Our 30- and 40-series received the ASABE award for outstanding Innovation in Product or Systems Technology 2017.
• 30- and 40-series models available as either forward or reverse rotation
• On initia... + Read More
Features
Woods offers a comprehensive line of rotary tillers for projects from landscaping and gardening to farming and commercial use. Our commercial-duty GHT series is designed for heavy tillage on tractors from 30-50 hp and utilizes a heavy-duty gear transmission to drive the tines for added power and extended life. The cast iron housing incorporates high quality beveled gears. The driveline is protected by a PTO slip clutch. Available in a 59" or 70" working width, the tillers include adjustable skid shoes to control tiller depth and a parking stand to make hook-up to the 3-point hitch easier.
If you're looking for a tiller thats ready to get down in the dirt when you need it to, the GHT is for you.
Specifications
| Tractor hitch | Cat 1 |
| Tractor Engine HP | 30 - 50 hp |
| Working width | 57" |
| Max. tilling depth | 7.25" |
| Weight | 611 lbs |
| Drive type | gearbox |
| Number of Tines/ Number of Flanges | 28 / 7 |
| Tines per flange | 4 c-type (6 optional) |
| Rotar shaft rpm | 211 rpm |
| PTO driveline protection | slip clutch |
| Tractor PTO speed - rpm | 540 rpm |
| Gearbox housing | heavy-duty cast iron |
| Gearbox drain plug | yes |
| Convertible side shift (right) | none |
| Quick hitch compatible | no |
