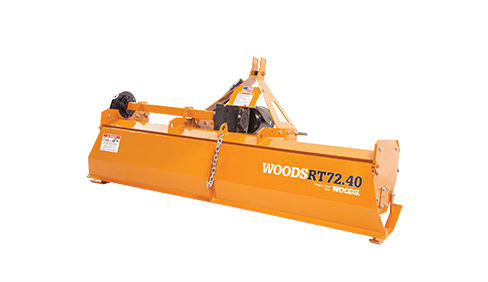

Woods RT72.40 / RTR72.40
Rotary Tillers RT72.40 / RTR72.40
Overview:
Woods’ line of rotary tillers couples the best design features with outstanding performance for the discerning user. Our 30- and 40-series received the ASABE award for outstanding Innovation in Product or Systems Technology 2017.
• 30- and 40-series models available as either forward or reverse rotation
• On initia... + Read More
Features
- 72-inch working width
- Tractor HP range: 20 to 50
- Three-point hitch: Cat 1
- Avaialble in forward or reverse rotation
- Tapered tailgate removes furrow for a finished seedbed
- Adjustable skid shoes for easy depth control
- Integrated parking stand for easy storage and hook-up
- Designed for use with compact tractors
Specifications
| Tractor PTO HP | 20-50 hp |
| Tractor hitch | Cat 1 |
| Working width | 72" |
| Overall width | 81" |
| Weight | 630 lbs |
| Max. tilling depth | 7" |
| Drive type | gearbox |
| Number of Tines/ Number of Flanges | 36 / 9 |
| Number of times per flange | 4 C-type |
| Rotor Speed | 210 |
| Tractor PTO speed | 540 |
| PTO driveline protection | slip clutch |
| Gearbox housing | heavy-duty cast iron |
| Gearbox drain plug | yes |
| Hopper capacity | 2.25" (left) |
| Quick-hitch compatible | yes |
| Duty Class | Standard-duty |
