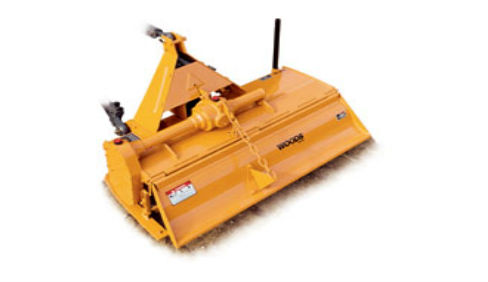

Woods SGT80
Rotary Tillers SGT80
Overview:
Woods’ line of rotary tillers couples the best design features with outstanding performance for the discerning user. Our 30- and 40-series received the ASABE award for outstanding Innovation in Product or Systems Technology 2017.
• 30- and 40-series models available as either forward or reverse rotation
• On initia... + Read More
Features
- 76-inch tilling width
- Tractor HP range: 40-70 hp
- Three-point hitch: Cat 2
- Extra heavy-duty gear transmission drives blades in the toughest conditions
- Cast iron housing with beveled gears
- Adjustable, 20-position skid shoes with replaceable wear plates for easy maintenance
- Sprockets with hardened teeth and splined center is enclosed in an oil bath
- Guard on rotor shaft helps prevent wrapping on end bearing
- Reinforced A-frame for extended life
Specifications
| Tractor hitch | Cat 2 |
| Tractor Engine HP | 40 - 70 hp |
| Working width | 76" |
| Max. tilling depth | 8.25" |
| Weight | 961 lbs |
| Drive type | gearbox |
| Num. Tines/ Num. Flanges | 40 / 10 |
| Tines per flange | 4 c-type (6 optional) |
| Rotar shaft rpm | 213 rpm |
| PTO driveline protection | slip clutch |
| Tractor PTO speed - rpm | 540 rpm |
| Gearbox housing | heavy-duty cast iron |
| Gearbox drain plug | yes |
| Convertible side shift (right) | none |
| Quick hitch compatible | no |
