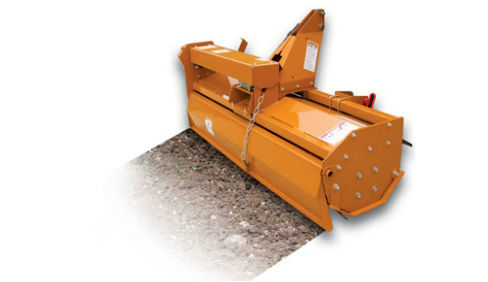

Woods TS/TSR44
Rotary Tillers TS/TSR44
Overview:
Woods’ line of rotary tillers couples the best design features with outstanding performance for the discerning user. Our 30- and 40-series received the ASABE award for outstanding Innovation in Product or Systems Technology 2017.
• 30- and 40-series models available as either forward or reverse rotation
• On initia... + Read More
Features
- 44-inch tilling width
- Tractor HP range: 18-30 hp
- Three-point hitch: Limited Cat 1 and 1
- Available as either forward or reverse rotation
- Standard slip clutch driveline protection
- Rugged steel tines can till seven inches into tough ground
- Specifically designed for subcompact tractors
- Perfect tool for estate-size properties
Specifications
| Tractor hitch | Limited Cat 1 & 1 |
| Tractor Engine HP | 18 - 30 hp |
| Working width | 44" |
| Max. tilling depth | 7" |
| Weight | 396 / 404 lbs |
| Drive type | #80 chain |
| Num. Tines/ Num. Flanges | 20 / 5 |
| Tines per flange | 4 C-type (6 optional) |
| Rotar shaft rpm | 240 rpm |
| PTO driveline protection | slip clutch |
| Tractor PTO speed - rpm | 540 rpm |
| Gearbox housing | cast aluminum |
| Gearbox drain plug | yes |
| Convertible side shift (right) | 7.5" |
| Quick hitch compatible | yes |
