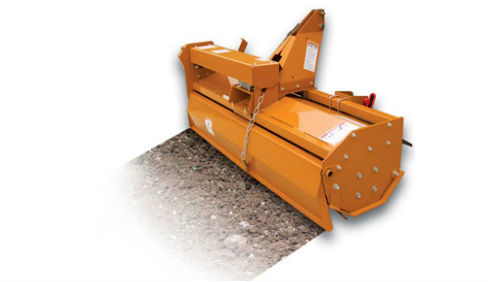

Woods TS/TSR60

Double tap to zoom



Features

  • 60-inch tilling width
  • Tractor HP range: 20-45 hp
  • Three-point hitch: Cat 1
  • Available as either forward or reverse rotation
  • Standard slip clutch driveline protection
  • Sturdy rear tailgate evenly distributes dirt, leaving a smooth, flat seed bed
  • Strong, cast-iron gearbox withstands rugged use
  • Specifically designed for compact tractors

Specifications

Tractor hitch Limited Cat 1 & 1
Tractor Engine HP 18 - 30 hp
Working width 60"
Max. tilling depth 7"
Weight 467 / 473 lbs
Drive type #80 chain
Num. Tines/ Num. Flanges 28 / 7
Tines per flange 4 C-type (6 optional)
Rotar shaft rpm 240 rpm
PTO driveline protection slip clutch
Tractor PTO speed - rpm 540 rpm
Gearbox housing cast aluminum
Gearbox drain plug yes
Convertible side shift (right) 15.5"
Quick hitch compatible yes
