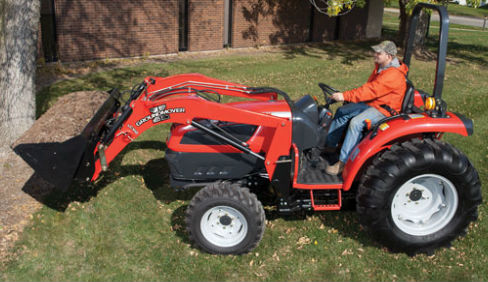

Woods LC108
Double tap to zoom
LC LC108
Overview:
Load or haul any material with Woods Front-end Loaders.
Engineered with convenience and ruggedness in mind, Woods Loaders are perfect for commercial landscaping jobs or around the farm or ranch. The mid-attaching loader boom provides optimal visibility and maneuverability for those tight places. The wrench-less, two-pin mid-attach mount system offers greater flexibility for your tractor. The unique 4-bar bucket linkage allows a 35-degree bucket roll-back angle for less material loss and a 50-degree bucket dump angle to ensure complete emptying. And Woods Front-end Loaders can be painted to match almost any tractor brand – completing your professional look.
- Less
Load or haul any material with Woods Front-end Loaders.
Engineered with convenience and ruggedness in mind, Woods Loaders are perfect for commercial landscaping jobs or around the farm or ranch. The mid-attaching loader boom provides optimal visibility and maneuverability for those tight places. The wrench-less, tw... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- Tractor HP range: 28-50 hp
- 108-inch maximum lift height
- Commercial grade bucket with round-back bucket for even material flow
- Four-bar bucket linkage maximizes bucket roll back and dump angles
- Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
- Can be painted to match most tractor brands
Specifications
Recommended tractor horsepower | 28-50 hp |
Bucket widths | 60", 66", 72" |
Bucket rated capacity c.c. ft. (66" / 72") | 11.6 / 12.8 / 14 |
Working width | 5" |
Maximum lift height | 108" |
Clearance under bucket | 83" |
Reach at maximum height | 40" |
Bucket roll back angle | 35° |
Bucket dump angle | 53° |
Tested hydraulic PSI | 2,500 psi |
Lift capacity at bucket pin | 2,375 lbs |
Breakout at bucket pin | 4,200 lbs |
Lift capacity at 19.7" ahead of bucket pins | 1,950 lbs |
Breakout at 19.7" ahead of bucket pins | 3,375 lbs |
Pivot pins diameter | 1.25" |
Lift cylinder diameter | 2.48" |
Bucket cylinder diameter | 2.48" |
