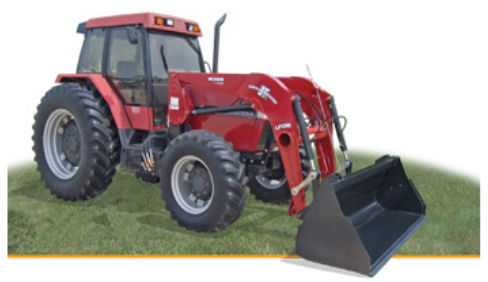

Woods LF156
LF LF156
Overview:
Load or haul any material with Woods Front-end Loaders.
Engineered with convenience and ruggedness in mind, Woods Loaders are perfect for commercial landscaping jobs or around the farm or ranch. The mid-attaching loader boom provides optimal visibility and maneuverability for those tight places. The wrench-less, tw... + Read More
Features
- Tractor HP range: 85-140 hp
- 156-inch maximum lift height
- Commercial grade bucket with round-back bucket for even material flow
- Four-bar bucket linkage maximizes bucket roll back and dump angles
- Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
- Can be painted to match most tractor brands
Specifications
| Recommended tractor horsepower | 85-140 hp |
| Bucket widths | 84", 96" |
| Bucket rated capacity c.c. ft. (66" / 72") | 28.7 / 33 |
| Working width | 6" |
| Maximum lift height | 156" |
| Clearance under bucket | 121" |
| Reach at maximum height | 36" |
| Bucket roll back angle | 35° |
| Bucket dump angle | 50° |
| Tested hydraulic PSI | 2,750 psi |
| Lift capacity at bucket pin | 4,850 lbs |
| Breakout at bucket pin | 7,140 lbs |
| Lift capacity at 19.7" ahead of bucket pins | 3,480 lbs |
| Breakout at 19.7" ahead of bucket pins | 4,990 lbs |
| Pivot pins diameter | 1.25" |
| Lift cylinder diameter | 2.95" |
| Bucket cylinder diameter | 2.76" |
