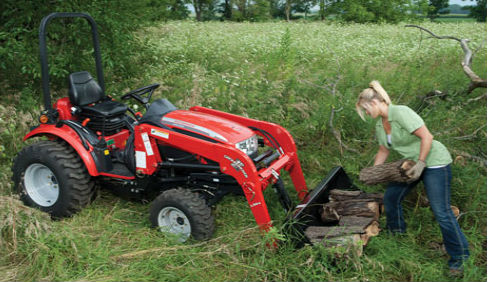

Woods LS84
Double tap to zoom
LS LS84
Overview:
With over 65 years in the loader business, Woods Groundmover-X loaders provide you with the ability to complete virtually every rugged job faced, while delivering years of worry-free service.
Fits subcompact tractors for homeowners and landscapers.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- Tractor HP range: 20-30 hp
- 84-inch maximum lift height
- Commercial grade bucket with round-back bucket for even material flow
- Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
- Can be painted to match most tractor brands
Specifications
Recommended tractor horsepower | 20-30 hp |
Bucket widths | 48", 54", 60" |
Bucket rated capacity c.c. ft. (66" / 72") | 7.4 / 8.4 / 9.4 |
Working width | 4" |
Maximum lift height | 84" |
Clearance under bucket | 64" |
Reach at maximum height | 24" |
Bucket roll back angle | 24° |
Bucket dump angle | 45° |
Tested hydraulic PSI | 2,100 psi |
Lift capacity at bucket pin | 1,000 lbs |
Breakout at bucket pin | 1,700 lbs |
Lift capacity at 19.7" ahead of bucket pins | 700 lbs |
Breakout at 19.7" ahead of bucket pins | 1,200 lbs |
Pivot pins diameter | .75", 1" |
Lift cylinder diameter | 1.57" |
Bucket cylinder diameter | 2.48" |
