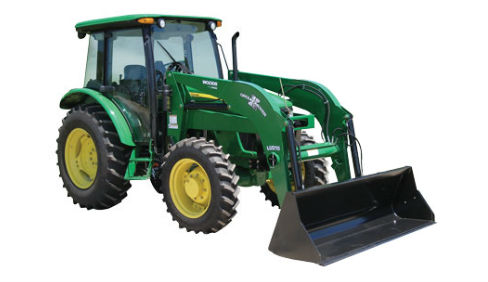

Woods LU215
LU LU215
Overview:
Load or haul any material with Woods Front-end Loaders.
Engineered with convenience and ruggedness in mind, Woods Loaders are perfect for commercial landscaping jobs or around the farm or ranch. The mid-attaching loader boom provides optimal visibility and maneuverability for those tight places. The wrench-less, tw... + Read More
Features
- Tractor HP range: 50-100 hp 2WD and FWA Utility Tractors
- 138-inch maximum lift height
- Offers greater clearance for FWA tractor tires while still adapting to 30-inch row crop applications
- Heavy-duty 1.25-inch greasable pins provide strength and wear resistance to pivot areas
- Modern replacement option for older DuAl® 200 and 215 series loaders
- Commercial grade bucket with round-back bucket for even material flow
- Four-bar bucket linkage maximizes bucket roll back and dump angles
- Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
- Can be painted to match most tractor brands
Specifications
| Recommended tractor horsepower | 50-100 hp |
| Bucket widths | 84" |
| Bucket rated capacity c.c. ft. (66" / 72") | 20.8 |
| Working width | 5" |
| Maximum lift height | 138" |
| Clearance under bucket | 111" |
| Reach at maximum height | 28" |
| Bucket roll back angle | 22° |
| Bucket dump angle | 45° |
| Tested hydraulic PSI | 2,750 psi |
| Lift capacity at bucket pin | 3,600 lbs |
| Breakout at bucket pin | 5,100 lbs |
| Lift capacity at 19.7" ahead of bucket pins | 2,400 lbs |
| Breakout at 19.7" ahead of bucket pins | 3,600 lbs |
| Pivot pins diameter | 1.25" |
| Lift cylinder diameter | 2.76" |
| Bucket cylinder diameter | 2.76" |
