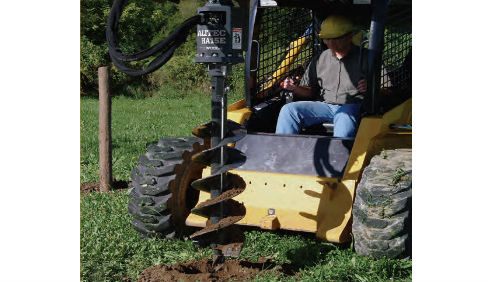

Woods HA15E
Augers HA15E
Overview:
•Models for every application, hole size, ground condition, and type of skid steer
•Designed with a planetary drive system for durability and use in hard soils
•High-flow models are designed for heavy industrial use — boring up to 20-feet
Features
- 10-foot maximum digging depth
- Auger diameter range: 6-36 inches
- Hydraulic flow requirement: 15-25 gpm
- Designed with a planetary drive system for durability and use in hard soils
- Dual-angle teeth offer 40 or 50-degree attack angle and are secured with a lug and bolt attachment
- Standard, Hardface and Carbide tooth options based on soil type
Specifications
| Working width | 10' (3.0 m) |
| Auger diameter range | 6 - 36" (152.4 - 914.4 mm) |
| Hydraulic flow requirement | 15 - 25 gpm (57-95 lpm) |
| Hydraulic pressure requirement | 1,500 - 3,750 psi (103-259 bar) |
| Auger speed at 20 gpm (76 lpm) | 104 rpm |
| Auger speed at 25 gpm (95 lpm) | 129 rpm |
| Auger speed at 30 gpm (114 lpm) | - |
| Auger speed at 35 gpm (132 lpm) | - |
| Auger speed at 40 gpm (151 lpm) | - |
| Auger speed at 45 gpm (170 lpm) | - |
| Approximate weight with 12" auger | 433 lbs (197 kg) |
| Application | construction grade tough soil conditions |
