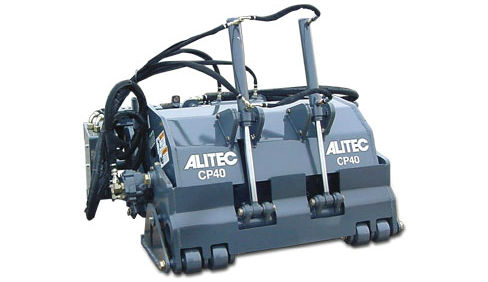

Woods CP40
Cold Planers CP40
Overview:
Top pivot design self-levels drum and chassis creating higher down forces and smoother cuts.
Optional Drums
Step drums and stripe removal drums are available for added versatility in special applications.
Features
- 40-inch cutting width
- Cutting depth range: 0-8 inches
- Manual controls attach to any skid steer
- Top pivot design to self-level drum and chassis for higher down force and smoother cuts
- Optional water kit for increased longevity
- Optional step drum and stripe removal drum for added versatility
Specifications
| Hydraulic flow classification | high-flow |
| Working width | 40" (1,016.0 mm) |
| Depth of cut | 0-8" (203.2 mm) |
| Number of teeth | 94 |
| Side shift (right) | 0-22" (0-558.8 mm) |
| Tilt | +/- 10° |
| Hydraulic flow requirement | 33 - 47 gpm (125 - 178 lpm) |
| Hydraulic pressure requirement | 3,000 - 5,000 psi (207-345 bar) |
| Operating weight | 3,200 lbs (1,455 kg) |
| Depth control mechanism | hydraulic |
| Tilt control mechanism | hydraulic |
| Side shift mechanism | hydraulic |
| Hydraulic function activation means | manual or electric |
