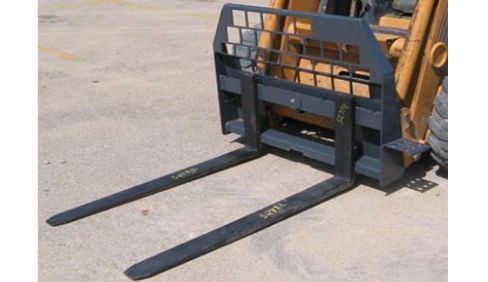

Woods PF2242S

Double tap to zoom



Features

  • 42-inch fork length
  • 2,000-pound load rating
  • Sliding forged steel fork tines
  • Ideally suited for application where following the ground contour is essential

Specifications

Operating weight 280 lbs (127 kg)
Working width 42" (1,067 mm)
Fork capacity at 19.7" from fork frame face 2,000 lbs (909 kg)
Fork tine dimensions 1.4" x 3.9" (24.5 x 100 mm)
Fork soread range 8" - 40" (203 - 1,016 mm)
Fork type Free pivoting rail
Back guard Full height, high visibility
