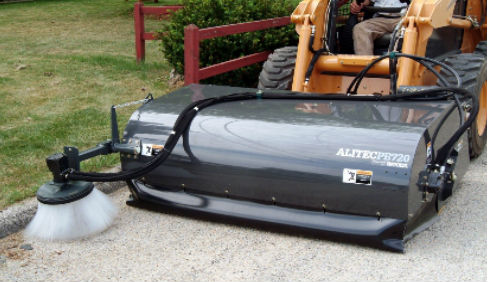

Woods PB720-2

Double tap to zoom



Features

  • 72-inch width
  • Hopper capacity: 16.8 ft3
  • Both forward and reverse sweeping direction
  • Bolt-on cutting edge to loosen debris
  • Lightweight construction allow mounting to low-lift capacity loaders

Specifications

Working width 72" (1,829 mm)
Overall width 78.6" (1,996 mm)
Broom diameter 26" (660 mm)
Height 25.25" (641 mm)
Length 57" (1,448 mm)
Approximate operating weight 925 lbs (420 kg)
Hopper capacity 16.8 ft3 (0.48 m3)
Hydraulic flow requirement 12 - 25 gpm at 3,000 psi (45-95 lpm at 207 bar)
Broom speed 100 - 200 rpm
