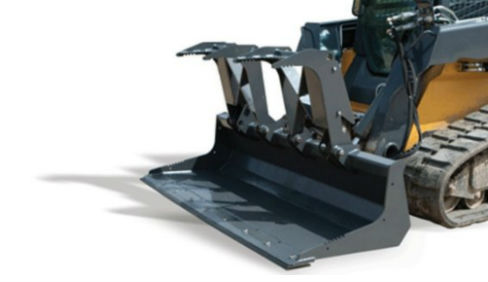

Woods HLSG66

Double tap to zoom



Features

  • 66-inch working width
  • 15.1 cubic feet capacity
  • Single, beveled cutting edge with back-up bar
  • Twin hydraulic cylinders for independent clamping on uneven materials
  • Standard cylinder guards protect rods and hoses for longevity
  • Optional bolt-on, double beveled edge and end plat extensions for enhanced versatility

Specifications

Hydraulic Pressure Protection Slat Kit
SAE Rated Operating Capacity up to 4,800 lbs
Ag Tractor Sizes 45 - 100 hp (up to 10,000 lbs)
Working width 66"
Length 35"
Height 27"
Weight 773 lbs
Heaped Capacity (ft3) 15.1
