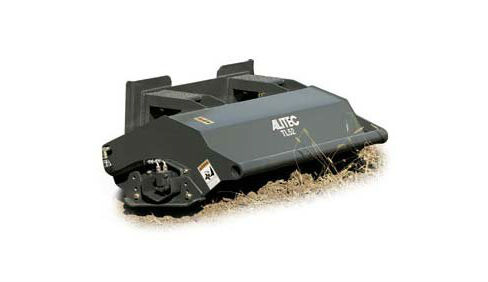

Woods TL52A
Tillers TL52A
Overview:
Work your soil – forward and reverse – with Wood Alitec™ Tillers
Features
- 52-inch cutting width
- Direct drive hydraulic motors – no maintenance or adjustments necessary
- Dual-drive motors power both ends – eliminating rotor twist
- Recessed drive motors for easy maneuvering in tight spaces
- Offset mounting covers right side loader tracks when operating in reverse
- Bi-directional tine rotation for tilling in both forward and reverse
Specifications
| Overall width | 60" (1,524 mm) |
| Working width | 52" (1,320.8 mm) |
| Working depth | 6" (152.4 mm) |
| Overall height | 31" (787.4 mm) |
| Number of tines | 24 |
| Tine rotation | forward or reverse |
| Operating weight | 510 lbs (232 kg) |
| Driveline | (2) in - line hydraulic motors |
| Tine speed | 74 - 247 rpm |
| Hydraulic flow requirement | 12 - 40 gpm (45-151 lpm) |
| Hydraulic pressure requirement | 1,800 - 3,000 psi (124-207 bar) |
