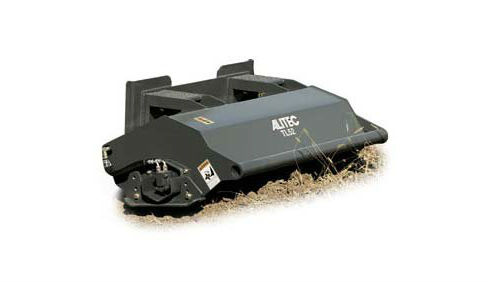

Woods TL84A
Tillers TL84A
Overview:
Work your soil – forward and reverse – with Wood Alitec™ Tillers
Features
- 84-inch cutting width
- Direct drive hydraulic motors – no maintenance or adjustments necessary
- Dual-drive motors power both ends – eliminating rotor twist
- Recessed drive motors for easy maneuvering in tight spaces
- Offset mounting covers right side loader tracks when operating in reverse
- Bi-directional tine rotation for tilling in both forward and reverse
Specifications
| Overall width | 97" (2,387.6 mm) |
| Working width | 84" (2,133.6 mm) |
| Working depth | 6" (152.4 mm) |
| Overall height | 31" (787.4 mm) |
| Number of tines | 40 |
| Tine rotation | forward or reverse |
| Operating weight | 825 lbs (375 kg) |
| Driveline | (2) in - line hydraulic motors |
| Tine speed | 74 - 247 rpm |
| Hydraulic flow requirement | 24 - 60 gpm (91-227 lpm) |
| Hydraulic pressure requirement | 3,000 - 4,000 psi (207-276 bar) |
