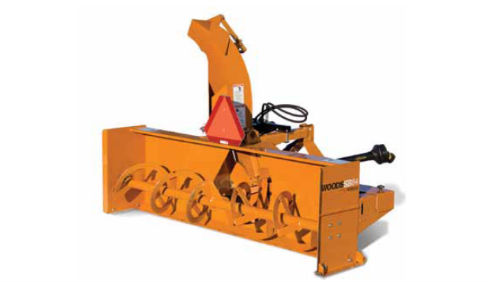

Woods SB74C
SB SB74C
Overview:
When plowing snow just doesn’t do the complete job, turn to your Woods snow blower to quickly and efficiently clear the way.
The superior two-stage design means more throwing force with less horsepower and the superior discharge chute design means less plugging. Woods snow blowers are built tough to provide reliable... + Read More
Features
- 74-inch working width
- Tractor HP range: 30-50 hp
- Three-point hitch: Cat 1 and 2
- ASABE quick-hitch compatibility ensures faster, easier and safer hook-ups
- Woods two-stage design for more throwing force with less horsepower, when compared to a single-stage snow blowers
- Four-blade fan design to move snow faster
- Reinforced steel side plates for exceptional durability
- Optional hydraulic or electric chute rotator for quick and easy adjustments
Specifications
| Duty Class | Standard-Duty |
| PTO Horsepower | 30-50 hp |
| Tractor PTO speed | 540 rpm |
| Hitch | Cat 1 & 2 |
| Working width | 74" |
| Transport width | 76" |
| Working height | 26" |
| Approximate weight | 592 lbs |
| Driveline | Cat 3 |
| Driveline protection | shear bolt |
| Drive Type-Fan | gearbox |
| Drive Type-Auger | gearbox & chain |
| Number of Feeder Augers | 1 |
| Auger Flighting | .313" x 2" |
| Chute Rotation | 270° |
| Hydraulic Chute Rotator | optional |
| Fan Diameter | 24" |
| Fan Depth | 8" |
| Replaceable Skids | yes |
| Adjustable Skids | yes |
| Replaceable Cutting Edge | no |
| Telescoping 3-Point Hitch | no |
