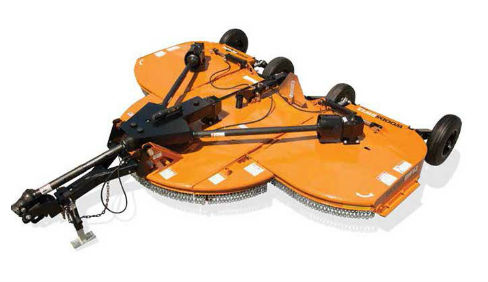

Woods BW12
Batwing Cutters BW12
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- The Original Batwing® in a New 12-foot width, designed specifically for compact tractors
- 12-foot Dual-wing cutter for compact/utility tractors
- Main driveline: Cat 4
- Tractor PTO HP: 35 hp minimum
- Cuts brush up to 1.5-inches in diameter
- Side frame depth of 11-inches
- Lighter tongue weight ideal for use on lower horsepower compact and utility tractors
- Fully baffled deck for even distribution and a finer shred
- Standard integrated chain shielding
- Exclusive quick-change pins enable speedy blade changes in the field
Specifications
| PTO Horsepower | 35 hp minimum |
| Tractor hitch | swivel clevis |
| Cutting width | 12 ft |
| Cutting height | 2" - 12" |
| Cutting capacity | 1.5" |
| Gearbox HP | 160 hp - splitter / 75 hp - center and wing |
| Blade tip speed | 14,300 fpm center / 14,900 fpm wing |
| Deck thickness | 12 gauge, high-strength steel |
| Side frame thickness | 7 gauge |
| Deck side depth | 11" |
| Weight (tongue / total) | 750 lbs / 2450 lbs |
| Blade dimensions | .5" x 4" |
| Blade overlap | 6" |
| Flex wing | 90° up, 22° down |
| Tires | laminated, used aircraft, foam-filled aircraft |
| Suspension | spring on center section |
| PTO driveline | Main - Cat 4 / Wing - Cat 3 |
| Cutting area shielding | standard chain shielding |
