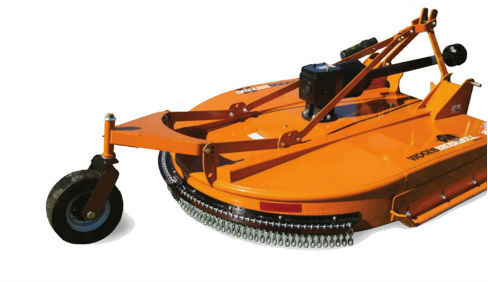

Woods BB7200X
Brushbull Single-spindle Cutters BB7200X
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 72-inch Single-Spindle Cutter
- Three-point hitch: Cat 1 and 2
- Tractor HP range: 50-150 hp
- Cutting capacity up to 4-inches
- Adjustable full-length skid shoes
- Standard blade ring
- Special heavy-duty stump jumper
- Optional baffle
- Optional dual tail wheels
- Extreme durability with a 3-piece deck plate welded to two 3" x 4" structural beams running the length of the deck, plus a 2-inch tubular rear bumper
Specifications
| Cutting width | 72" |
| Transport width | 80.5" |
| Overall length | 116" |
| Cutting height | 2" - 12" |
| Approximate weight | 1,440 lbs |
| PTO Horsepower | 50 - 150 hp |
| Tractor PTO speed | 540 rpm |
| Hitch | Cat 1 & 2 / clevis |
| Safety Shielded Driveline | Cat 5 |
| Driveline protection | slip clutch |
| Gearbox output shaft diameter | 2.38" |
| Gearbox horsepower | 150 hp |
| Blades | (2) .5" x 4" |
| Blades composition | heat-treated alloy steel |
| Blade carrier | round stump jumper |
| Blade mount system/pin diameter | quick change blade pins/1.5" |
| Number of spindles | 1 |
| Blade tip speed | 13,950 fpm |
| Deck side depth | 11.7" |
| Cutter baffles | Optional |
| Tail wheel - laminated tire | 5" x 16" |
| Frame & deck support | 3" x 4" full length structural beams |
| Rear bumper | 2" tubular |
| Skid-shoes | Extreme duty replaceable |
| Side skirt thickness | .25" |
| Cutting capacity | 4" |
