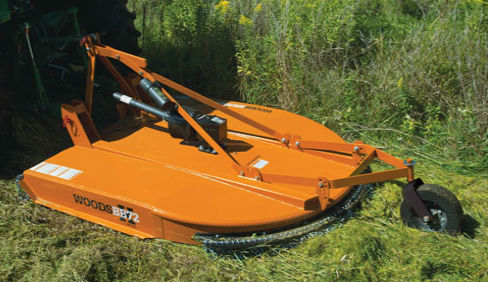

Woods BB72X
Brushbull Single-spindle Cutters BB72X
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 72-inch Single-Spindle Cutter
- Three-point hitch: Cat 1
- Tractor HP range: 30-65 hp
- Cutting capacity up to 1.5-inches
- Exclusive quick-change pins enable speedy blade changes in the field
Specifications
| Cutting width | 72" |
| Transport width | 77.5" |
| Overall length | 116" |
| Deck length | 84" |
| Cutting height | 1" - 9" |
| Approximate weight | 804 lbs |
| PTO Horsepower | 30 - 65 hp |
| Tractor PTO speed | 540 rpm |
| Hitch | Cat 1/Clevis |
| Quick hitch compatible | yes |
| Safety Shielded Driveline | Cat 3 |
| Driveline protection | shear pin or slip clutch |
| Gearbox output shaft diameter | 1.57" |
| Gearbox horsepower | 75 |
| Blades (thickness x width) | (2) .5" x 3" |
| Blade composition | heat-treated alloy steel |
| Blade carrier | oval stump jumper |
| Blade mount system/pin diameter | quick-change blade pins / 1.5" |
| Number of spindles | 1 |
| Blade speed | 792 rpm |
| Blade tip speed | 14,963 fpm |
| Blade rotation | CCW |
| Deck side depth | 9.5" |
| Tail wheel - laminated tire | 4" X 16" |
| Tail wheel mount | 4-point |
| Frame & deck support | 3" x 4" full length structural beams |
| Rear bumper | 2" tubular |
| Cutter deck thickness | 11 gauge |
| Side skirt thickness | 11 gauge |
| Cutting capacity | 1.5 |
