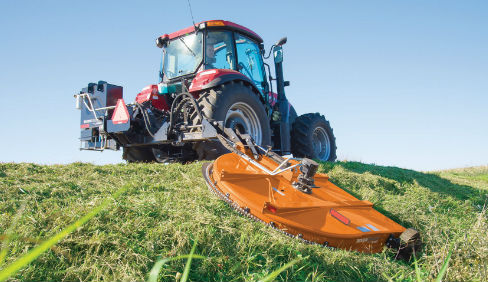

Woods DBH5.30
Ditch Bank Cutters DBH5.30
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- Highest-rated cutting horsepower in its class – full 40 hp at cutting head
- Narrow 119" transport width – no frame overhang
- Shifts 30" for a total reach (tractor center to outside cutter) of 152"
- Fixed counter weight position does not extend beyond width of road lane
- Cuts at almost any angle with +/- 90° flex (90° up, 90° down)
- Optional hydraulic cooling system reduces downtime due to overheating -- you work longer
- Optional gauge wheels and frame-mounted tail wheel
Specifications
| PTO Horsepower | 60 - 150 hp |
| Hitch category / type | Cat 2 & 3 |
| Maximum HP at cutting head | 40 |
| Flex range angles | 90° up, 90° down |
| Cutting width | 60" |
| Diameter of tine | 2" - 10" |
| Cutting capacity | 2" |
| Blade tip speed | 540 rpm /14,860 fpm |
| Blade tip speed | 1,000 rpm / 14,441 fpm |
| Deck side depth | 9.4" |
| Deck thickness | 10 ga. (0.135") |
| Overall width | 191" (fully extended) |
| Overall length | 72" |
| Approximate weight | 1,970 lbs |
| Blade dimensions | .5" x 4" |
| Quick-hitch compatible | yes |
