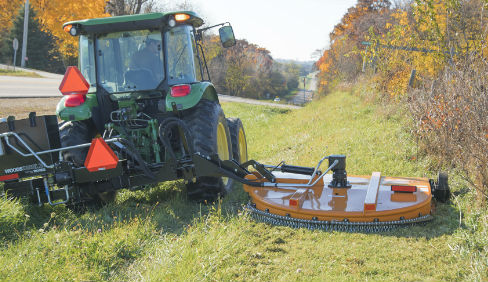

Woods DBH6.30

Double tap to zoom



Features

  • Only 6-foot model on the market
  • Highest-rated cutting horsepower in its class – full 40 hp at cutting head
  • Narrow 119" transport width – no frame overhang
  • Shifts 30" for a total reach (tractor center to outside cutter) of 152"
  • Fixed counter weight position does not extend beyond width of road lane
  • Cuts at almost any angle with +/- 90° flex (90° up, 90° down)
  • Optional hydraulic cooling system reduces downtime due to overheating -- you work longer
  • Optional gauge wheels and frame-mounted tail wheel

Specifications

PTO Horsepower 60 - 150 hp
Hitch category / type Cat 2 & 3
Maximum HP at cutting head 40
Flex range angles 90°  up, 90° down
Cutting width 72"
Diameter of tine 2" - 10"
Cutting capacity 2"
Blade tip speed 540 rpm/ 17,832 fpm
  1000 rpm / 17,329 fpm
Deck side depth 9.5"
Deck thickness 10 ga. (0.135")
Overall width 203" (fully extended)
Overall length 84"
Approximate weight 2,270 lbs
Blade dimensions .5" x 4"
Quick-hitch compatible yes
