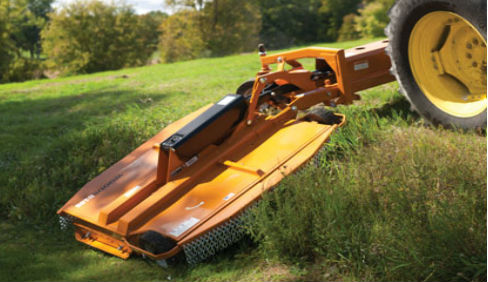

Woods S106
Ditch Bank Cutters S106
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- Three-point hitch: Cat 2
- Tractor HP range: 50-90 hp
- Mow at extreme angles and minimize U-joint wear with the Woods self-equalizing drive assembly
- Twin box-type construction and a ribbed, reinforced deck for maximum structural strength
- Standard chain shielding
- Available in 540 or 1000 rpm
Specifications
| PTO Horsepower | 50 - 90 hp |
| 3-point hitch | Cat. 2 |
| Side frame thickness | .25" |
| Cut Capacity | 2" |
| Cut Height | 1.5" - 12" |
| Cutting width | 6' |
| Inside Cutting Swath | 63" |
| Outside Swath | 135" |
| Transport With, | 130.5" |
| mower up to 75 degrees | |
| Mower Gauge Wheels | (2) 4" x 14" |
| Optional Tailwheel | 5" x 15.5" |
| Blade tip speed | 10,100 fpm |
| Shipping Weight | 1,534 lbs |
| Minimum Tractor Weight | 5,000 lbs |
