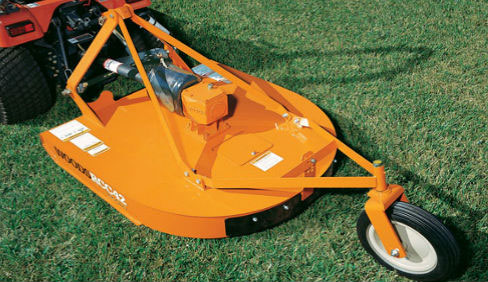

Woods RCC42
Economy Single-spindle Cutters RCC42
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 42-inch Low-Horsepower Single-Spindle Cutter
- Three-point hitch: Limited Cat 1
- Tractor HP range: 15-30 hp
- Cutting capacity up to 1-inch
- Standard rear metal band deflectors and rubber front belt shields
- Optional chain shielding
- Standard full-length skid shoes to glide easily over rough terrain
Specifications
| PTO Horsepower | 15-30 hp |
| Hitch category / type | Limited Cat 1 / cantilevered pin |
| Cutting width | 42" |
| Transport width | 45" |
| Maximum overall length | 75" |
| Deck length | 50" |
| Cutting height | 1-9" |
| Cutting capacity | 1" |
| Gearbox horsepower | 65 hp |
| Gearbox output shaft diameter | 1.57" |
| Blade tip speed | 11,400 fpm |
| Blade rotation | CCW |
| Deck side depth | 7" |
| Approximate weight | 350 lbs |
| Blade dimensions | (2) .38" x 3" |
| Blade carrier | oval stump jumper |
| Blade mount system | blade bolt |
| Blade pin diameter | 1.5" |
| Cutting deck thickness | 11 gauge |
| Side frame thickness | 11 gauge |
| Tail wheel - laminated tire | 4" x 15" |
| Safety-shielded driveline | Cat 3 |
| Driveline protection | slip-clutch or shear-pin |
| Tractor PTO speed | 540 rpm |
| Quick-hitch compatible | yes |
| Belting / Banding | chain shielding optional |
