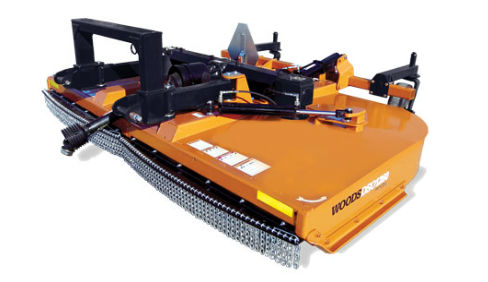

Woods DSO1260 Offset Semi-Mount
Multi-Spindle Cutters DSO1260 Offset Semi-Mount
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 126-inch, Offset, Semi-Mount Dual-Spindle Cutter
- Minimum Tractor HP: 50 hp
- Sixteen-inch hydraulic variable offset to the right or left
- Cutting capacity up to 3-inches
- Variable wheel spacing
- Large blade access window for easy maintenance
- Exclusive quick-change pins enable speedy blade changes in the field
Specifications
| PTO Horsepower | 50 hp |
| Hitch category / type | Cat 2 or 3 / clevis, semi-mounted |
| Cutting width | 126" |
| Cutting height | 2" - 13" |
| Cutting capacity | 3" |
| Gearbox horsepower rating | 205 hp splitter; 160 hp blade spindle |
| Gearbox warranty | 6 years |
| Blade tip speed (540 RPM) | 540 rpm / 16,881 fpm |
| Deck side depth | 12.6" |
| Approximate weight | 2,725 lbs |
| Blade dimensions | .5" x 4" |
| Side skirt thickness | .25" |
| Wheel selection | 21" laminated |
| Optional dual wheels - pull-type | no |
| Quick-hitch compatible | - |
