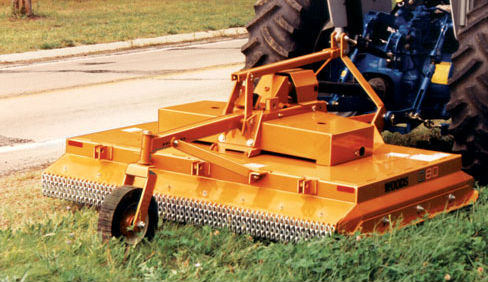

Woods MDO80 Mounted Offset
Multi-Spindle Cutters MDO80 Mounted Offset
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
The 80 inch cutting width, twin spindle design grass and weed cutter provides a near finish quality cut. Available in four configurations, mounted, pull type, mounted offset, and pull type offset - allowing a perfect match of cutter to application .
Woods exclusive Quick-Change blade holder assembly provides for easier, more convenient maintenance.
This is ideal for orchards, parks and scenic roadways.
Specifications
| PTO Horsepower | 40 hp |
| Hitch category / type | Cat 1 / cantilevered |
| Cutting width | 80" |
| Cutting height | 2" - 12" |
| Cutting capacity | 1" |
| Gearbox horsepower rating | 60 hp |
| Gearbox warranty | 1 year |
| Blade tip speed (540 RPM) | 13,920 fpm |
| Deck side depth | 9.4" |
| Approximate weight | 1,450 / 1220 lbs |
| Blade dimensions | .38" x 3" |
| Side skirt thickness | 7 gauge |
| Wheel selection | laminated, used aircraft, foam-filled aircraft, or 15" pneumatic |
| Optional dual wheels - pull-type | no |
| Quick-hitch compatible | - |
