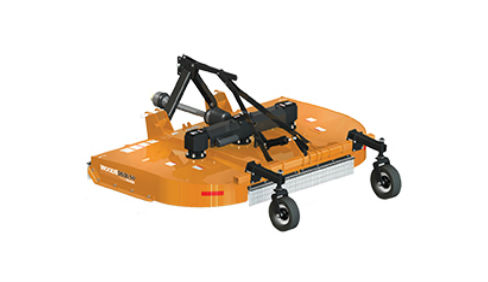

Woods MDS10.50 Mounted
Multi-Spindle Cutters MDS10.50 Mounted
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 120-inch mounted dual-spindle rotary cutter
- PTO HP: 65 - 205
- 3-inch cutting capacity
- Smooth, sloped-top deck for easy water and debris shedding
- Variable wheel spacing
Specifications
| PTO Horsepower | 65 - 205 hp |
| Hitch category / type | Cat 2 & 3 / clevis |
| Cutting width | 120" |
| Cutting height | 2-12" |
| Cutting capacity | 3" |
| Gearbox horsepower rating | 205 hp center, 160 hp spindle |
| Blade tip speed | 540 rpm / 15,974 fpm |
| 1,000 rpm / 16,232 fpm | |
| Deck side depth | 13" |
| Deck thickness | 10 ga. (.135") |
| Overall width | 127" |
| Overall length | 111" |
| Approximate weight | 2,373 lbs |
| Blade dimensions | .5" x 4" |
| Wheel selection | laminated, severe duty new ag, foam filled new ag, 15" rims |
| Optional dual wheels - pull-type | no |
| Quick-hitch compatible | yes |
