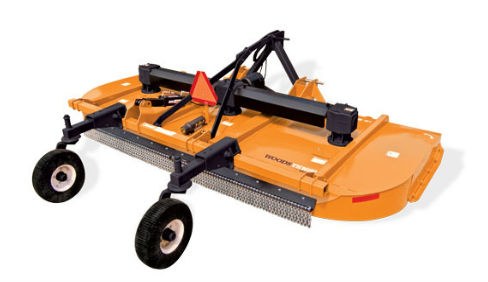

Woods MTS1680 Mounted
Multi-Spindle Cutters MTS1680 Mounted
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 168-inch, Pull-Type Triple-Spindle Cutter
- Minimum Tractor HP: 70 hp
- Cutting capacity up to 3-inches
- Standard high-torque drive train and baffles
- Variable wheel spacing
- Optional shredding kit for corn, cotton and milo
- Exclusive quick-change pins enable speedy blade changes in the field
Specifications
| PTO Horsepower | 70 hp |
| Hitch category / type | Cat 2 or 3 / clevis |
| Cutting width | 168" |
| Cutting height | 2" - 13" |
| Cutting capacity | 3" |
| Gearbox horsepower rating | 235 hp splitter; 205 hp blade spindle |
| Gearbox warranty | 6 years |
| Blade tip speed (540 RPM) | 15,540 fpm |
| Deck side depth | 12.4" |
| Approximate weight | 3,730 lbs |
| Blade dimensions | .5" x 4" |
| Side skirt thickness | .25" |
| Wheel selection | laminated, used aircraft, foam-filled aircraft, or 15" pneumatic |
| Optional dual wheels - pull-type | yes |
| Quick-hitch compatible | yes |
