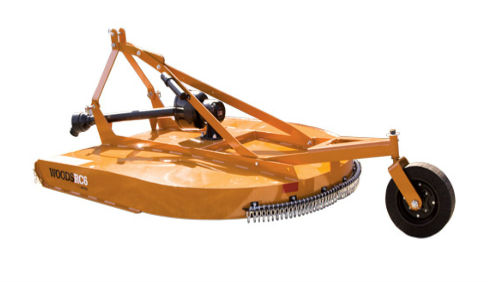

Woods RC4
RC-Series Single-spindle Cutters RC4
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 4-foot Single-spindle Cutter
- Three-point hitch: Cat 1
- Tractor HP Minimum: 15 hp
- Cutting capacity up to 1-inch
- Strong, fabricated tail wheel assembly with solid, laminated tire
- Optional chain shielding
- Optional bolt-on replaceable skid shoes for longer wear
Specifications
| Cutting width | 4 ft |
| PTO Horsepower | 15 hp minimum |
| Tractor hitch | Cat 1 / cantilevered |
| Cut Height | 2 - 9" |
| Cutting capacity | 1" |
| ASABE Quick Hitch Compatible | 50 hp |
| Blade tip speed | 13,100 fpm |
| Deck side depth | 7" |
| Approximate weight | 410 lbs |
| Blade dimensions | .5 x 3" |
| Blade Carrier / Stump Jumper | oval stump jumper |
| Tailwheel | 4 x 16" laminated |
| Driveline protection | shear-bolt or slip-clutch |
| Frame & deck support | 3/8" rails |
| Tractor PTO | 540 rpm |
| Quick hitch compatible | yes |
| Belting / Banding | belt standard / chain shielding optional |
